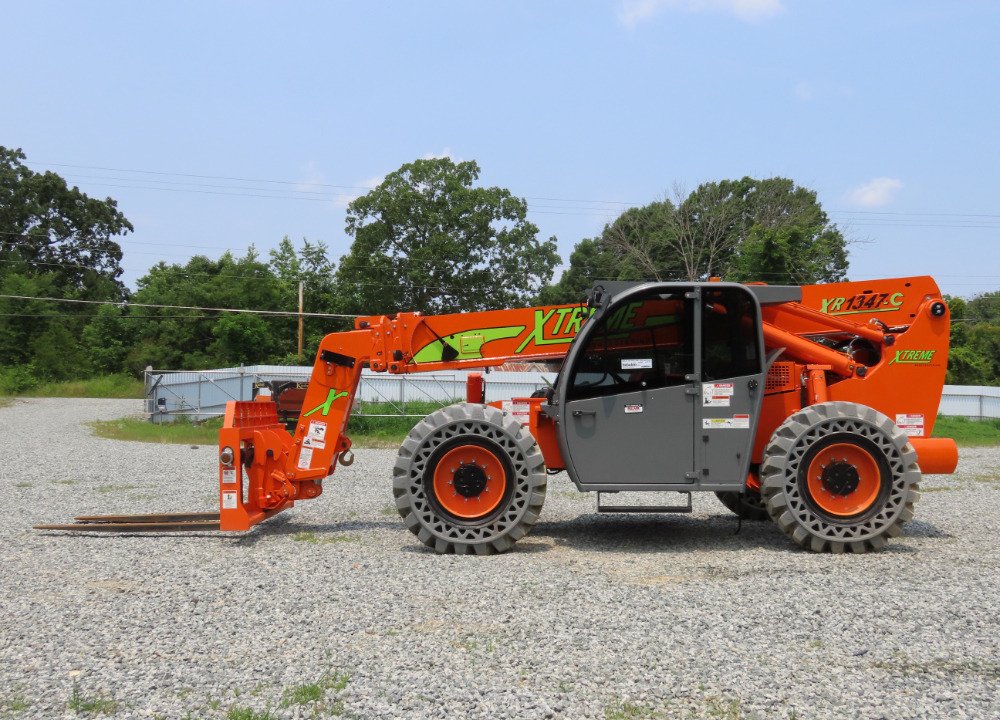

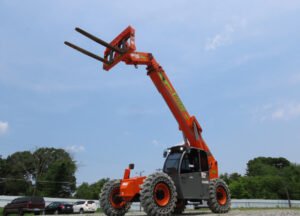

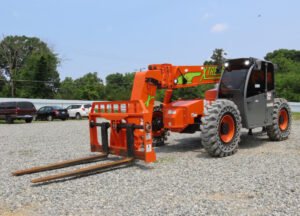

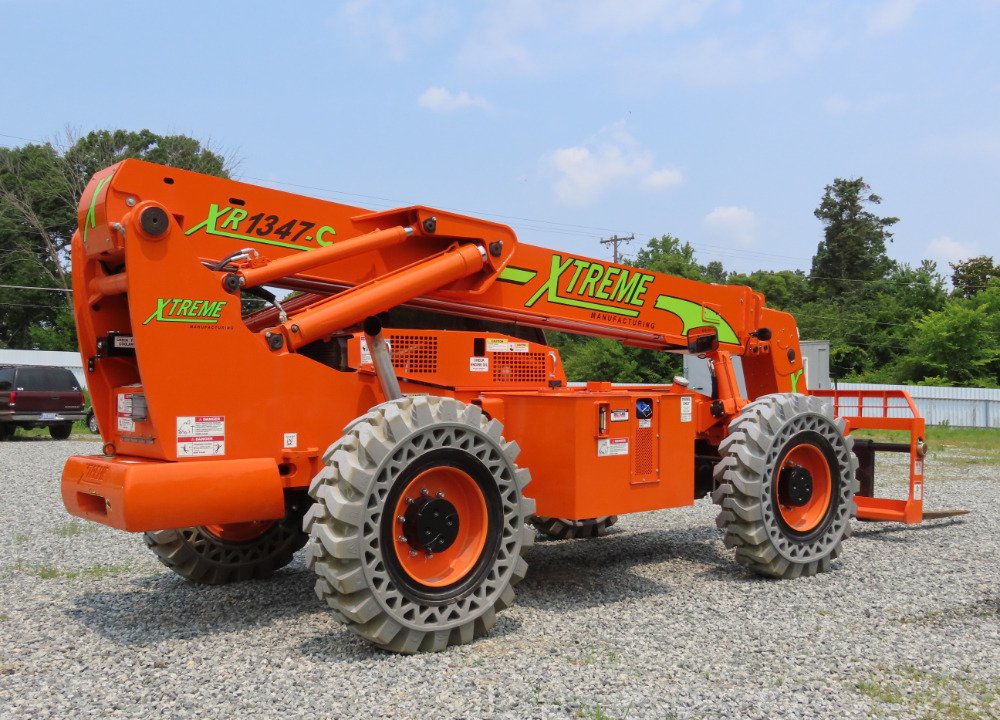

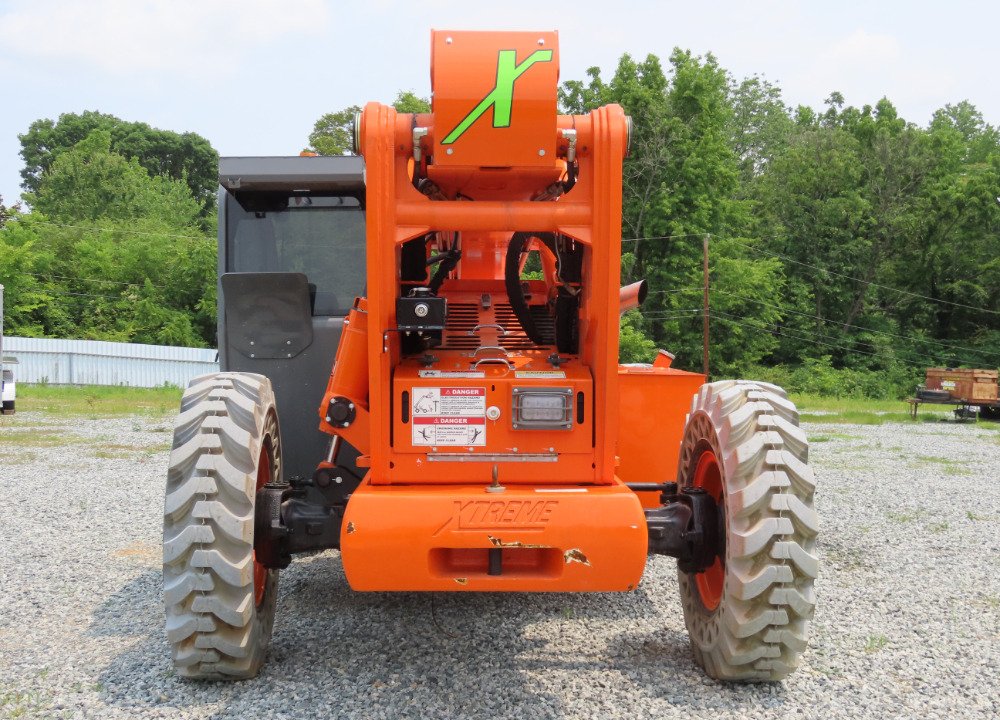

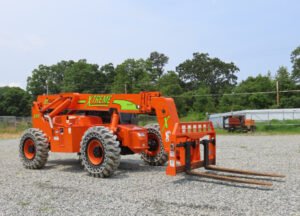

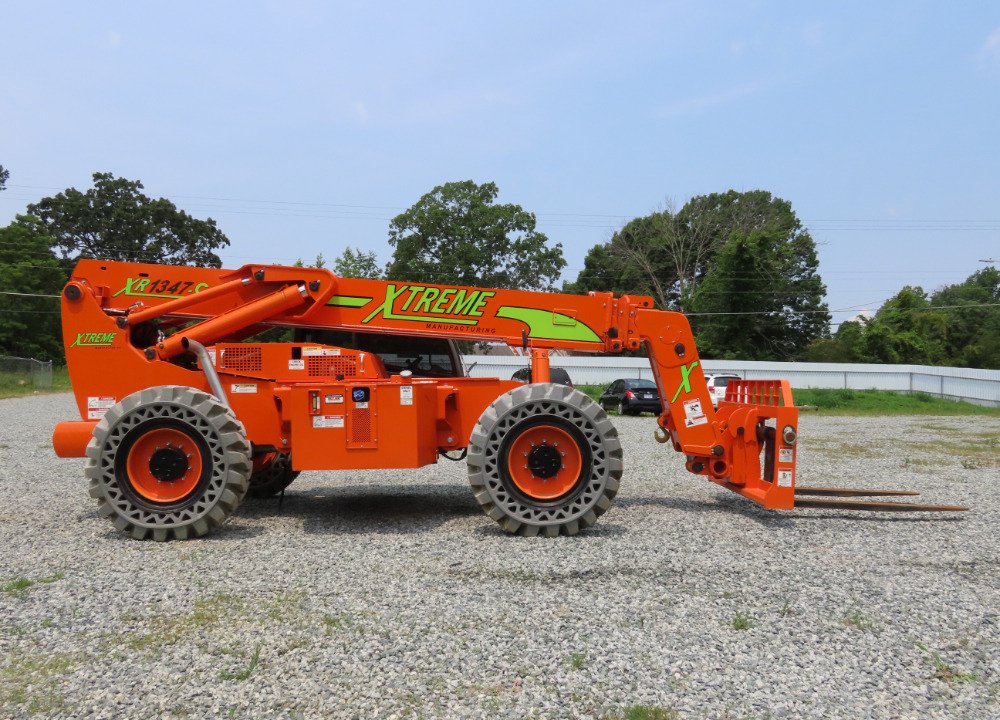

2022 Xtreme XR1347 47′ 13,000 lbs Telescopic Reach Forklift Telehandler
PRICE : $170000
Make: Xtreme
Model: XR1347
Year: 2022
Serial Number: XR1347-11-220500019

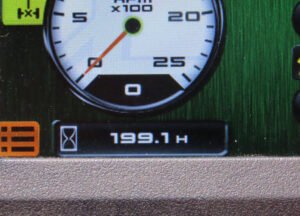

Hours: 200
Transport Dimensions: 338″ L x 102″ W x 104″ H
Transport Weight: 33,500 lbs
3 Way Selectable Steering – Crab, 2 Wheel, 4 Wheel

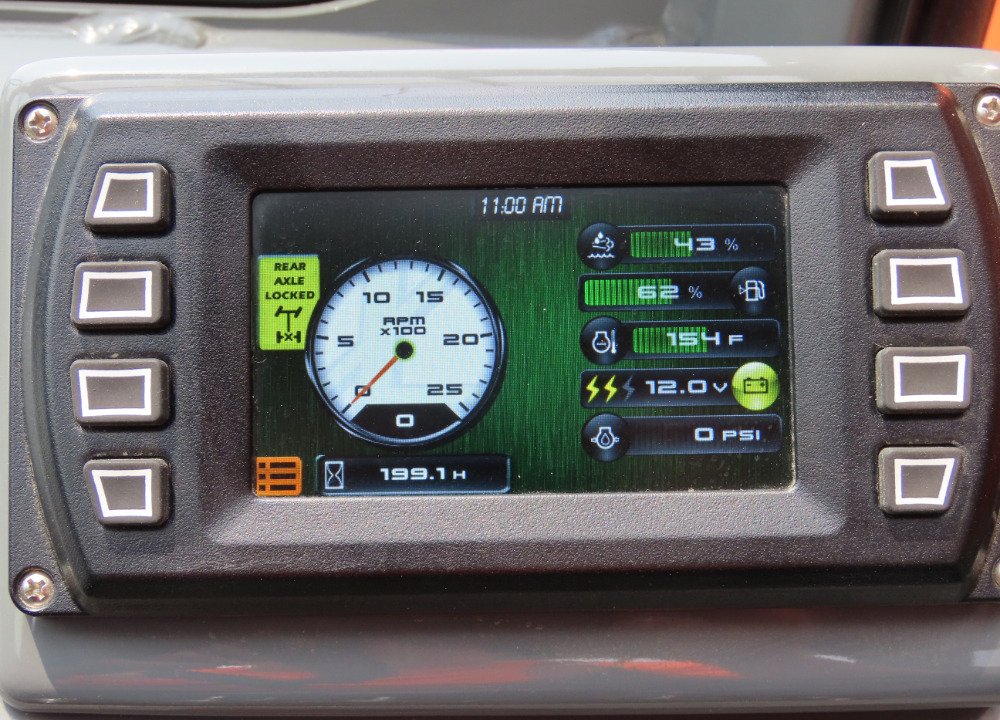

Digital Display

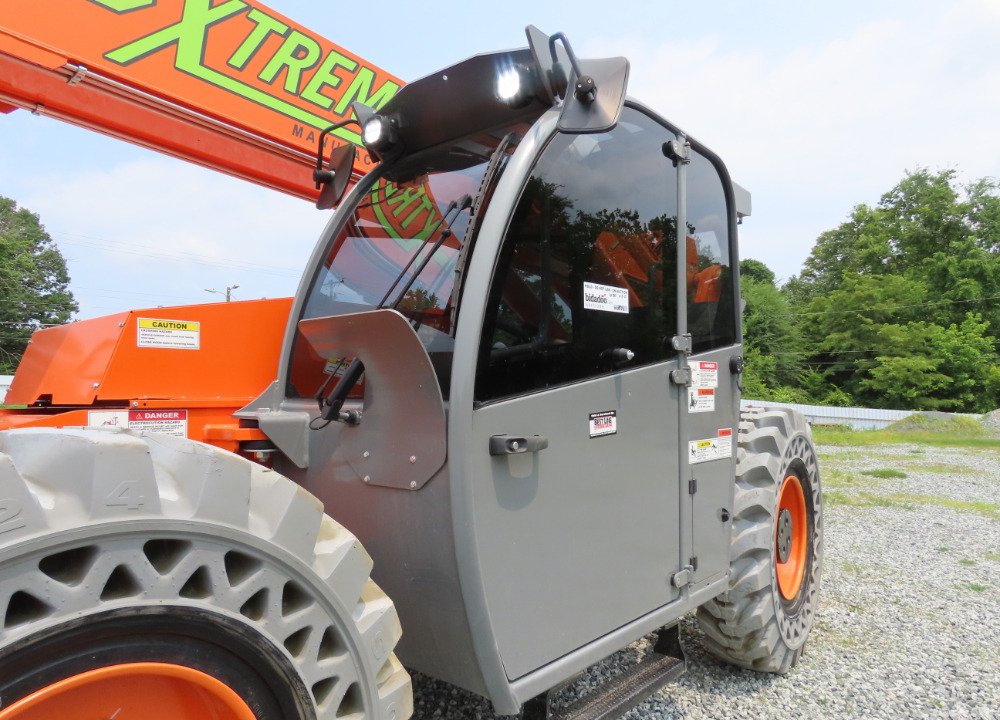

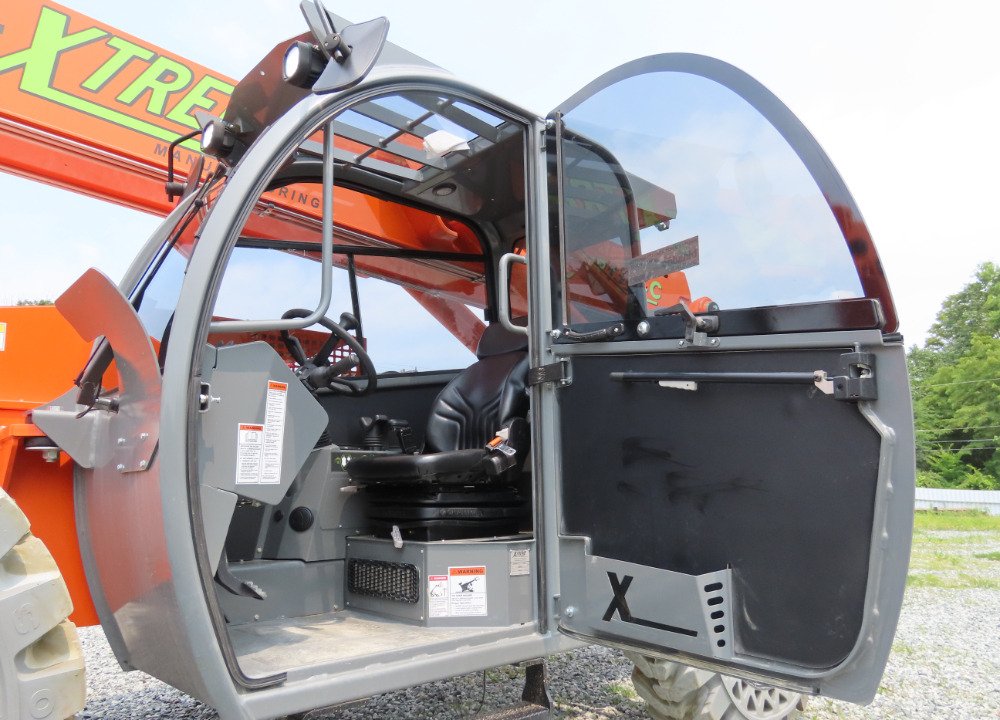

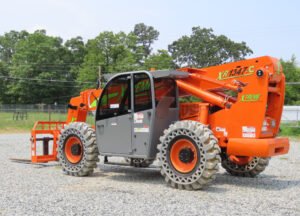

Enclosed Cab With A/C and Heat
LED Work Lights
360° operator visibility
Ductile Steel Manifold

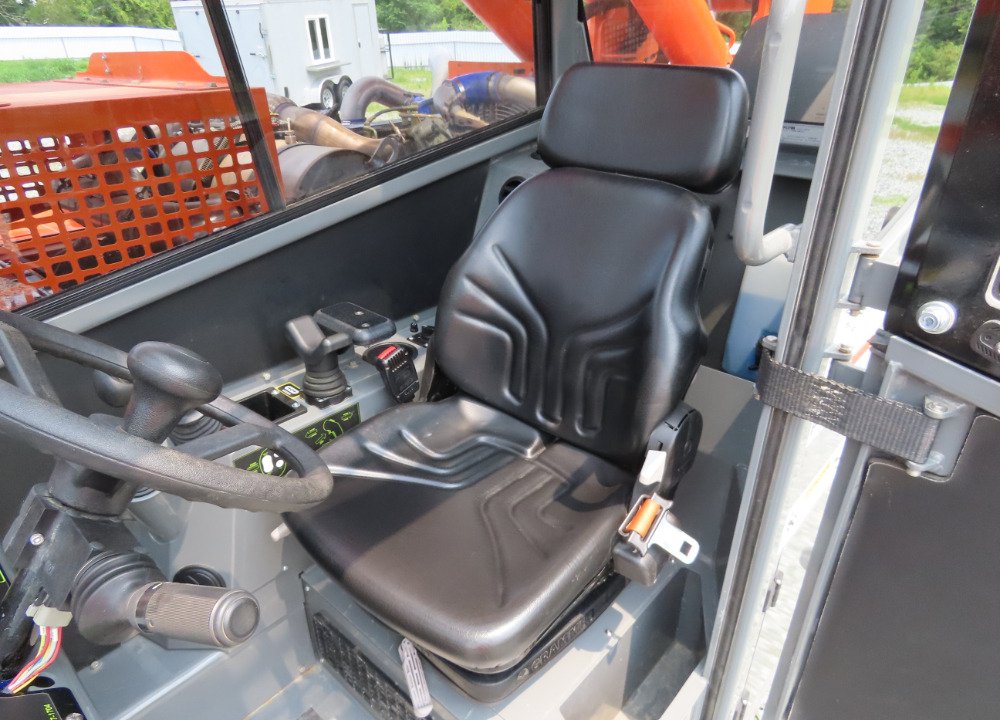

Suspension Seat
Easy Cab Mounted Grab Handles
Easy Service Access
Master Battery Disconnect Switch
Protected Tilt & Extend Cylinders
Boom Lift Point
Manual Lowering Valve (cylinders)
Large Cross-Section Boom
Heavy Duty Boom Chains
Dual Batteries
Back Up Alarm with Light
Electrical Auxiliary Hydraulic Control
Large Capacity Fuel Tank
Heavy Duty Pre-Cleaner
Trunnion Mounted Sway Cylinders
Additional High Pressure Hydraulic Filter
Standard Auxiliary Hydraulics
Easy Transport Tie Downs
Cab Step
Long Life Lexan Labels
Non-Marking Tires
Quick Attach Fork Carriage
Specifications
Drive Type: 4WD
Engine
Horsepower: 120 hp
Make: Cummins
Model: 3.8 L (Tier 4F)
Fuel Type: Diesel
Transmission Type: Dana T20000
Lift
Capacity: 13,000 lbs

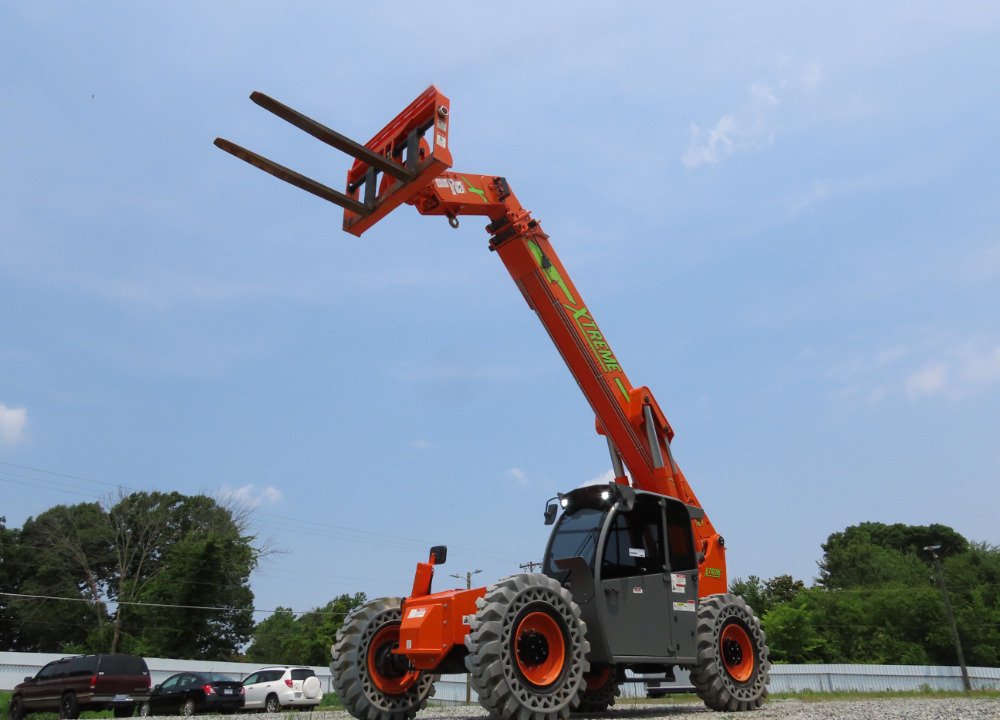

Height: 47′
Fork Size / Length: 6″ x 72″
Tire
Size: 14.00-24
Type: Semi-Pneumatic
Operator Station: Enclosed Cab
Forward Reach: 31′ 6″
Frame Leveling: 11 Degrees
Fuel Capacity: 50 Gallon
Wheelbase: 125″
Ground Clearance: 16.5″
Turning Radius: 12′
Hydraulic Pressure: 3,500 psi
